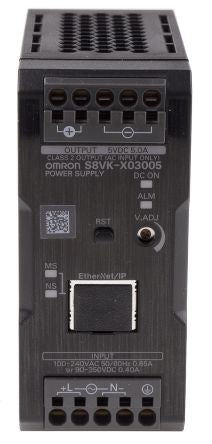

Omron, S8VK-X DIN Rail Panel Mount Power Supply, 5V dc Output Voltage, 5A Output Current [S8VK-X03005-EIP]; 174-5841
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 5 V dc |
| Output Current | 0.208333333333333 |
| Power Rating | 30W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Width | 40mm |
| Ripple And Noise | 130mV Pk-Pk |
| Mounting Type | DIN Rail Mount |
| Depth | 92mm |
| MTBF | 160000h |
| Output Voltage Adjustment Range | 4.5 → 5.8V |
| Minimum Temperature | -40°C |
| Load Regulation | 0.015 |
| Efficiency | 0.78 |
| Maximum Temperature | +70°C |
| Standards Met | CE, CULus, EAC, EN 61000-3-2, EN 61204-3, EN/IEC 60529, EN/IEC 61558-2-16, TUV, UL |
| Series | S8VK-X |
| Special Features | And more are Acquired on the Network and can be Managed all at Once, Output Current, Output Voltage, Power Boost Function at 150%, Replacement Time, Status Can be Checked On-Site Using the Indication Monitor |
