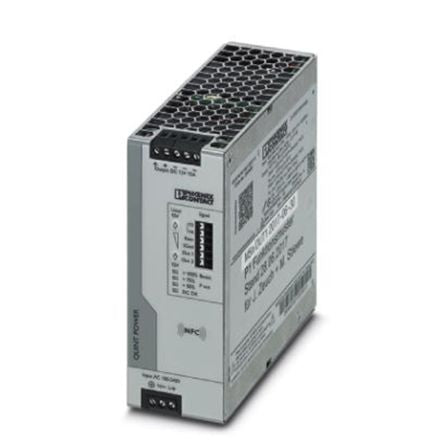

Phoenix Contact, QUINT4-PS/1AC/12DC/15 PSU, 12V dc Output Voltage, 15A Output Current [2904608]; 174-5886
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 230V ac |
| Output Voltage | 12 V dc |
| Output Current | 15 A |
| Power Rating | 180W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 130mm |
| Width | 50mm |
| Mounting Type | DIN Rail Mount |
| Hazardous Area Certification | Class I Division 2 Group A, Class I Division 2 Group B, Class I Division 2 Group C, Class I Division 2 Group D |
| Maximum Temperature | +70°C |
| Standards Met | ABS, BV, DIN VDE 0100-410, DNV GL, EN 50178/VDE 0160 (PELV), EN 60204-1 (PELV), EN 61000-3-2, EN 61558-2-16, IEC 60950-1, IEC 60950-1/VDE 0805 (SELV), LR, PRS, UL 60950-1, UL ANSI/ISA-12.12.01 Class I, UL Listed UL 508 |
| Series | QUINT4-PS/1AC/12DC/15 |
| Ripple And Noise | 50mV Pk-Pk |
| MTBF | >749000h |
| Depth | 125mm |
| Minimum Temperature | -25°C |
| Efficiency | 0.92 |
| Special Features | Dynamic Boost with up to 200% for 5 Second, High-Performance QUINT POWER Power Supplies, Monitoring Indicates Critical Operating States Before Errors Occur, NFC Interface |
