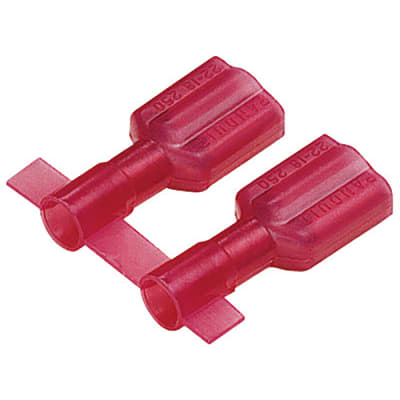

Panduit DNF18-188FIB-3K

Panduit Disconnects, [DNF18-188FIB-3K]; PAF325

Mã kho: PAF325
Mã nhà sản xuất: DNF18-188FIB-3K
Tên nhà sản xuất: Panduit
7.430₫ - 7.430₫
7.430₫
7.430₫ - 7.430₫
7.430₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Disconnects: Panduit DNF18-188FIB-3K

MÔ TẢ SẢN PHẨM

The DNF18-188FIB-3K Reel Smart™ Disconnect is a continuously molded and fully insulated female disconnect with a funnel entry. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The internal wire stop assures proper wire insertion length into th

_THÔNG SỐ KỸ THUẬT:

Disconnect Type Female Disconnect
Insulation Material Nylon
Insulation Type Fully Insulated
Maximum Wire Size (AWG) #18
Minimum Wire Size (AWG) #22
Wire Strip Length (In.) 9/32
Wire Strip Length (mm) 7.1
Tab Size (In.) 0.187 x 0.020
Tab Size (mm) 4.8 x 0.5
Standards Met UL 310, CSA 22.2 No.153
Maximum Voltage (V) 600
Base Material Brass
Finish/Coating Tin-Plated
Color Code Red
Barrel Type Funnel
Flammability Rating UL94-HB
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Sub Brand Reel Smart™
Maximum Metric Conductor Size (mm²) 1
Minimum Metric Conductor Size (mm²) 0.5
Maximum Wire Insulation Diameter (In.) 0.136
Maximum Wire Insulation Diameter (mm) 3.45
Overall Height (In.) 0.16
Overall Height (mm) 4.1
Overall Length (In.) 0.78
Overall Length (mm) 19.8
Overall Width (In.) 0.29
Overall Width (mm) 7.4
Tongue Angle Straight
Packaging Type Reel
Product Type Disconnects on a Reel
For Use With Crimp press with CA9 (CD9-4A) or CA-800EZ (CD-800-4) applicator
Maximum Voltage (kV) 0.6
Part Features • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Fully insulated design provides protection from electrical shorts • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability, maximum insulation temperature 221°F (105°C) • per UL 310
