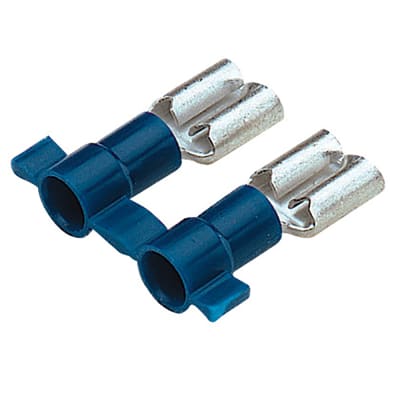

Panduit DV14-250B-3K

Panduit Disconnects, [DV14-250B-3K]; PAF330

Mã kho: PAF330
Mã nhà sản xuất: DV14-250B-3K
Tên nhà sản xuất: Panduit
7.040₫ - 7.040₫
7.040₫
7.040₫ - 7.040₫
7.040₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Disconnects: Panduit DV14-250B-3K

MÔ TẢ SẢN PHẨM

The DV14-250B-3K Reel Smart™ Disconnect is a continuously molded female disconnect with vinyl insulated barrel and a funnel entry. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The internal wire stop assures proper wire insertion length int

_THÔNG SỐ KỸ THUẬT:

Disconnect Type Female Disconnect
Insulation Material Vinyl
Insulation Type Barrel Insulated
Maximum Wire Size (AWG) #14
Minimum Wire Size (AWG) #16
Wire Strip Length (In.) 9/32
Wire Strip Length (mm) 7.1
Tab Size (In.) 0.250 x 0.032
Tab Size (mm) 6.3 x 0.8
Standards Met UL 310, CSA 22.2 No.153
Maximum Voltage (V) 600
Base Material Brass
Finish/Coating Tin-Plated
Color Code Blue
Barrel Type Funnel
Flammability Rating UL94-HB
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Sub Brand Reel Smart™
Maximum Metric Conductor Size (mm²) 2.5
Minimum Metric Conductor Size (mm²) 1.5
Maximum Wire Insulation Diameter (In.) 0.17
Maximum Wire Insulation Diameter (mm) 4.3
Overall Height (In.) 0.12
Overall Height (mm) 3
Overall Length (In.) 0.83
Overall Length (mm) 21.1
Overall Width (In.) 0.29
Overall Width (mm) 7.4
Tongue Angle Straight
Packaging Type Reel
Product Type Disconnects on a Reel
For Use With Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator
Maximum Voltage (kV) 0.6
Part Features • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310, where applicable
