Fluke 1507, Insulation Tester 10GΩ CAT III 600 V, CAT IV 600 V [FLUKE 1507]; 518-6008

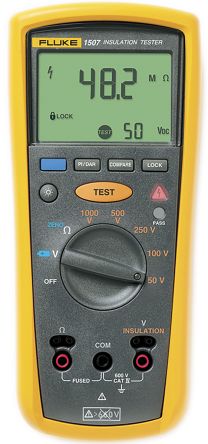

Fluke 1507 Electrical Insulation Tester

The Fluke 1507 10G ohm electrical insulation tester is compact, rugged, reliable and easy to use. The multiple test voltages make it an instrument of choice for troubleshooting, commissioning and preventative maintenance applications. The 1507 unit easily and quickly performs advanced insulation resistance testing. The remote probe helps to save time and money when performing tests. The testing voltage of this tester ranges between 50V and 1000V. This 1507 device is battery powered and has 4 AA battery type.

This 1507 insulation tester from FLUKE measures the integrity of cable jackets and ensures your equipment is in the safe zone. The unit also automatically calculates polarisation indices and dielectric absorption ratios to save time and effort. For flexibility, you can use it with 50 to 1000V installations. Repeat tests are a breeze, thanks to the built-in compare function. You can get on with testing immediately, as the instrument comes with leads, probes and alligator clips. It even has a remote probe for those hard-to-reach nooks and crannies.

Features & Benefits

• Accepts optional fluke TPAK magnetic hanging system
• Auto discharge of capacitive voltage for added user protection
• Auto power OFF
• Automatic calculation of polarisation index and dielectric absorption ratio
• Compare (Pass/Fail) function
• For added user protection, live circuit detection prevents insulation test if voltage > 30V is detected
• Insulation test ranges between 0.01MΩ and 10GΩ
• Large, backlit display
• Live circuit detection prevents insulation test when voltages is above 30V
• Remote test probe for rapid testing
• Repetitive or hard-to-reach testing easy with the remote test probe
• Weighs 550g for easy handling
• 600V RMS/DC overvoltage protection for added safety
• Battery powered for use when you're on the go

Applications

The Fluke 1507 insulation tester is ideal for advanced industrial applications

• Medical systems
• HVAC installation
• Research and development facilities
• Telecommunications equipment

Does this insulation tester display results clearly?

Yes, you get easy-to-read measurements on a large digital display. The unit also features a backlight for use in darker places.

Can I use the tester with a magnetic hanging system?

Yes, this versatile component is compatible with the hands-free FLUKE TPAK magnetic hanging system (331-7402).

Supplied with

The Fluke 1507 tester comes with remote probe, test leads, test probes, alligator clips, user documentation
