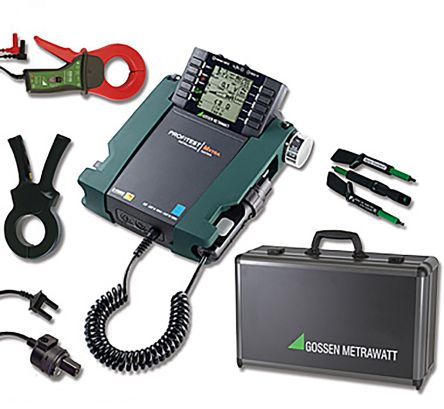

Gossen Metrawatt M520P Electrical Tester [M500Y]; 136-5808
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Loop Impedance Test Type | Line to Earth |
| Automatic RCD Test | Yes |
| RCD Ramp Test | Yes |
| Insulation Test Voltage | 1000V |
| Maximum Voltage Measurement | 500V |
| Test Type | Auto Test, RCD Test, RCD Trip Current, RCD Trip Time |
| Earth Resistance Measurement | Yes |
| Downloadable Data | Yes |
| Interface Type | Bluetooth |
| RCD Test Type | B, B+, G, R |
| Test Standards | IEC 60364-6, IEC 61851, IEC/EN 61010-1, IEC/EN 61557 |
| Dimensions | 260 x 330 x 90mm |
| Safety Category | CAT III 500 V, CAT IV 300 V |
| Battery Type | 1.5 V AA |
| IP Rating | IP40 |
| Safety Category Voltage | 300 V, 500 V |
| Maximum Continuity Resistance | <50kΩ |
| Maximum Operating Temperature | +50°C |
| Safety Category Level | CAT III, CAT IV |
| Weight | 2.3kg |
| Model Number p | PROFiTEST MXTRA |
| Width | 330mm |
| Length | 260mm |
| Minimum Operating Temperature | -5°C |
| Height | 90mm |
| Power Source | Battery |
