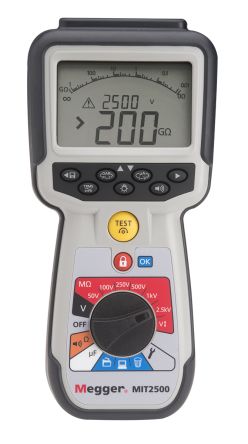

Megger MIT2500, Insulation Tester 200GΩ [1004-745]; 122-6798

Megger Insulation Tester, Bluetooth Connectivity, 250kΩ Input Impedance - MIT2500 Series - 1004-745

The MIT2500 high voltage handheld insulation & continuity tester has been designed for electrical and industrial test applications, where operation voltages exceed 1000 V and higher insulation test voltages are needed.

This all-in-one device makes equipment testing a breeze. It keeps track of resistance levels so you can detect current leakage before it wreaks havoc on your system. This versatile device also allows you to measure high voltages, making it ideal for checking motors and cables in heavy-duty industrial settings. You can select a fixed voltage or the variable range option to test voltages between 50 and 2500V to suit your set up. Thanks to the device's Bluetooth connection, you can send your results to a computer or tablet up to 10m away to boost productivity.

MIT2500 features a redesigned case, back-stand and 6 cell battery compartment. It also offers a guard terminal to reduce surface tracking currents that reduce accuracy at higher voltages.

Features & Benefits

• Safe for use in demanding environments, thanks to its broad operating temperature range between -10°C and +55°C
• Insulation testing up to 2.5 kV and 200 GΩ range in a handheld instrument
• Guard terminal for high-resistance accuracy
• Adjustable insulation test voltage from 50 V to 2500 V for more flexibility in testing
• Stabilised insulation test voltage
• Single range, faster continuity testing from 0.01 Ω to 1 MΩ

L• ive circuit detection and protection

• CAT IV 600 V applications
• New case design with optional magnetic hanging strap
• IP54 rating means it's resistant to limited amounts of dust and water sprays
• ABS housing
• Continuity testing - can also test the continuity of circuits.
• Compact and portable - designed for easy use in various field conditions.
• Rugged construction - built to withstand tough environments.

Applications

The MIT2500 is a versatile tool for testing the electrical integrity of cables, motors, generators, and other electrical equipment. It's commonly used in industries such as:

• Electrical maintenance
• Power generation
• Manufacturing
• Telecommunications industry
• Transportation networks
• IT facilities
• Construction projects

Does this insulation tester store data ?

Yes, this insulation tester stores up to 1000 test results, making data recording and retrieval a walk in the park.
