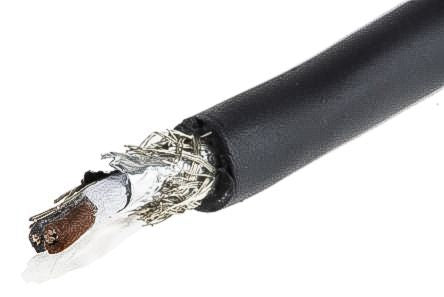

Alpha Wire 2 Conductor Braid, Foil Industrial Cable 0.56 mm²(CE, CSA, UL) Black 30m Reel, XTRA-GUARD 2 Series [25152 BK005]; 873-1301
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.56 mm² |
| Screened/Unscreened | Screened |
| Length | 30m |
| Sheath Colour | Black |
| American Wire Gauge | 20 AWG |
| Outer Diameter | 5.99mm |
| Screen Type | Foil and Braid |
| Maximum Operating Temperature | +90°C |
| Core Strands | 7/0.32 mm |
| Sheath Material | Polyethylene PE |
| Voltage Rating | 300 V |
| Conductor Resistance | 10.2 Ω/1000ft |
| Insulation Material | PVC |
| Minimum Operating Temperature | -30°C |
| Standards Met | CE, CSA, UL |
| Series | Xtra-Guard 2 |
| Minimum Bend Radius | 10 x Diameter |
| Conductor Material | Tinned Copper |
| Drain Wire | Yes |
