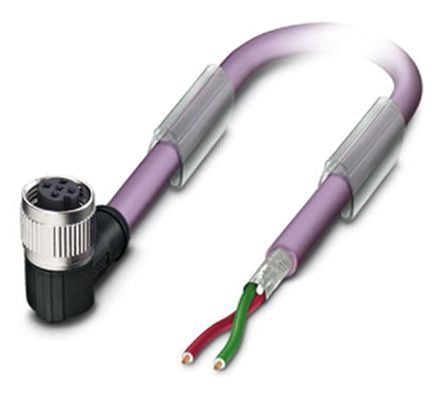

Phoenix Contact SAC-2P-FRB/ 2.0-910 SCO Series, Right Angle M12 to Unterminated Cable assembly, 2 Core [1403628]; 883-0834
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Right Angle M12 |
| Connector B | Unterminated |
| Length | 2m |
| Number of Cores | 2 |
| Connector A Number of Contacts | 2 |
| Current Rating | 0.166666666666667 |
| Sheath Colour | Purple |
| Number of Strands | 19 |
| IP Rating | IP65, IP67 |
| Voltage Rating | 250 V |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.25 mm² |
| Series | SAC-2P-FRB/ 2.0-910 SCO |
| Connector A Housing Gender | Socket |
| Minimum Bend Radius | 40 (Fixed) mm, 65 (Movable) mm |
| Outer Sheath Material | Polyurethane |
| Conductor Material | CuSn |
| Size of Strands | 0.13 mm |
| Maximum Operating Temperature | +80°C |
| Outer Diameter | 7.8mm |
| Characteristic Impedance | 150 Ω |
| Sheath Material | Polyurethane PUR |
| American Wire Gauge | 24 |
| Conductor Resistance | 78.6 /km |
| Shielding | Shielded |
| Insulation Material | Foamed PE |
| Minimum Operating Temperature | -40 (Fixed) °C, -30 (Flexible) °C |
| Standards Met | IEC 60332-1-2, UL 1581 |
