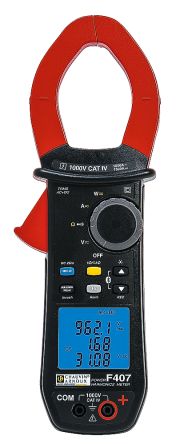

Chauvin Arnoux F407 Clamp Meter, Max Current 1kA ac, 1.5kA dc CAT III 1000V [P01120947]; 766-0618
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 1kA ac |
| Absolute Maximum DC Current Measurement | 1.5kA dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 99.99kΩ |
| Connectivity | Bluetooth |
| Model Number | F407 |
| AC Current Measurement Resolution | 10mA |
| DC Current Measurement Resolution | 10mA |
| Best DC Current Accuracy | ±(1% rdg + 3dgts) |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(1% rdg + 3dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 3dgts) |
| Best DC Voltage Accuracy | ±(1% rdg + 3dgts) |
| Resistance Measurement Resolution | 100mΩ |
| Battery Life | 350 h |
| Maximum Conductor Size | 48mm |
| AC Voltage Measurement Resolution | 10mV |
| Height | 41mm |
| Minimum Operating Temperature | -20°C |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Diode, Frequency, Harmonics, In-Rush Current, Power, Power Factor, Resistance |
| DC Voltage Measurement Resolution | 10mV |
| Dimensions | 92 x 41 x 272mm |
| Length | 272mm |
| Width | 92mm |
| Power Source | Battery |
| Weight | 600g |
| Jaw Capacity Busbars | 48mm |
| Safety Category Level | CAT III, CAT IV |
| Battery Type | AA |
| Safety Category Voltage | 1000V |
| Best Resistance Measurement Accuracy | ±1 % + 5 digits |
| Maximum Operating Temperature | +55°C |
| Display Type | LCD - Backlit |
| Safety Category | CAT III 1000V |
