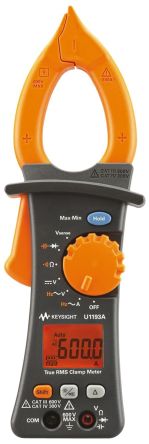

Keysight Technologies U1193A Clamp Meter, Max Current 600A ac CAT III 600 V, CAT IV 300 V [U1193A]; 746-7116
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 60kΩ |
| Model Number | U1193A |
| AC Current Measurement Resolution | 10mA |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(2% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1.2% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(0.5% rdg + 3dgts) |
| Display Type | LCD |
| Maximum Conductor Size | 35mm |
| Battery Life | 40 (Backlight On) h, 200 (Backlight Off) h |
| Jaw Capacity Busbars | 35mm |
| Weight | 334g |
| Safety Category Level | CAT IV, CAT lll |
| Resistance Measurement Resolution | 100mΩ |
| Dimensions | 225 x 77.1 x 38.6mm |
| DC Voltage Measurement Resolution | 10mV |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Resistance |
| True RMS | Yes |
| Minimum Operating Temperature | -10°C |
| Height | 38.6mm |
| AC Voltage Measurement Resolution | 10mV |
| Width | 77.1mm |
| Length | 225mm |
| Maximum Operating Temperature | +50°C |
| Safety Category Voltage | 300 V, 600 V |
| Battery Type | AAA |
| Safety Category | CAT III 600 V, CAT IV 300 V |
| Best Resistance Measurement Accuracy | ±0.8% + 3 Digits |
| Power Source | Battery |
| Non-Contact Voltage Detector | Yes |
