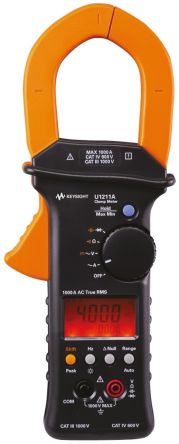

Keysight Technologies U1211A Clamp Meter, Max Current 1kA ac CAT III 1000 V, CAT IV 600 V [U1211A]; 698-7180
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 1kA ac |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 4kΩ |
| Connectivity | Bluetooth compatible |
| Model Number | U1211A |
| AC Current Measurement Resolution | 10mA |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(1% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(0.5% rdg + 3dgts) |
| Dimensions | 273 x 106 x 43mm |
| Resistance Measurement Resolution | 100mΩ |
| Length | 273mm |
| Width | 106mm |
| Power Source | Battery |
| Maximum Operating Temperature | +50°C |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Peak Hold, Resistance |
| DC Voltage Measurement Resolution | 100mV |
| Minimum Operating Temperature | -10°C |
| Height | 43mm |
| AC Voltage Measurement Resolution | 100mV |
| Maximum Conductor Size | 52mm |
| Battery Life | 60 h |
| Display Type | LCD |
| Best Resistance Measurement Accuracy | ±0.5% + 3 Digits |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Battery Type | 9V |
| Safety Category Level | CAT IV, CAT lll |
| Weight | 625g |
| Jaw Capacity Busbars | 52mm |
| Safety Category Voltage | 600 V, 1000 V |
