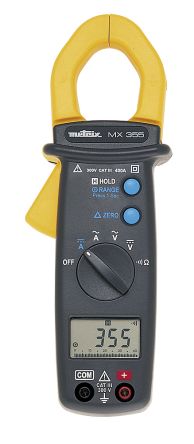

Metrix MX0355-Z Clamp Meter, Max Current 400A ac, 400A dc CAT II 600 V, CAT III 300 V [MX0355Z]; 346-7406
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 400A ac |
| Absolute Maximum DC Current Measurement | 400A dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 399.9Ω |
| Model Number | MX0355-Z |
| AC Current Measurement Resolution | 10mA |
| DC Current Measurement Resolution | 10mA |
| Best DC Current Accuracy | ±(2.5% rdg + 10dgts) |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(2% rdg + 10dgts) |
| Best AC Voltage Accuracy | ±(1.5% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(1% rdg + 2dgts) |
| Power Source | Battery |
| DC Voltage Measurement Resolution | 100mV |
| Dimensions | 193 x 50 x 28mm |
| Length | 193mm |
| Width | 50mm |
| Maximum Conductor Size | 30mm |
| Battery Life | N h |
| Jaw Capacity Busbars | 30mm |
| Height | 28mm |
| Safety Category Level | CAT II, CAT III |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance |
| Minimum Operating Temperature | 0°C |
| AC Voltage Measurement Resolution | 100mV |
| Weight | 230g |
| Display Type | LCD |
| Best Resistance Measurement Accuracy | ±1% + 2 Digits |
| Battery Type | AAA |
| Safety Category Voltage | 300 V, 600 V |
| Safety Category | CAT II 600 V, CAT III 300 V |
| Maximum Operating Temperature | +40°C |
