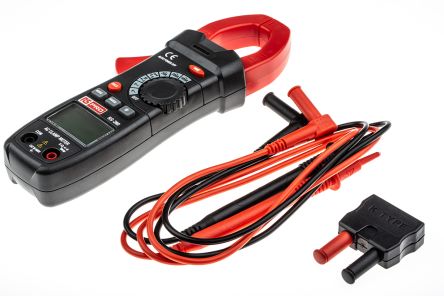

RS PRO RS380 Clamp Meter, Max Current 400A ac CAT III 600 V; 123-1935
Mã kho: 1231935
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 400A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 20MΩ |
| Model Number | RS380 |
| AC Current Measurement Resolution | 10mA |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(2.5% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1.5% rdg + 8dgts) |
| Best DC Voltage Accuracy | ±(1.5% rdg + 2dgts) |
| Minimum Operating Temperature | +5°C |
| Height | 230mm |
| AC Voltage Measurement Resolution | 100µV |
| Jaw Capacity Busbars | 23mm |
| Weight | 230g |
| Safety Category Level | CAT III |
| Temperature Measurement Resolution | 1 °C, 1 °F |
| Safety Category Voltage | 600V |
| Battery Type | AAA |
| Absolute Maximum Temperature Measurement | +760 °C, +1400 °F |
| Safety Category | CAT III 600 V |
| Best Resistance Measurement Accuracy | ±1% ± 4 Digits |
| Display Type | LCD |
| True RMS | Yes |
| Best Temperature Measurement Accuracy | ±3% ± 5 Digits |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance, Temperature |
| DC Voltage Measurement Resolution | 100µV |
| Dimensions | 82 x 40 x 230mm |
| Resistance Measurement Resolution | 100mΩ |
| Length | 82mm |
| Width | 40mm |
| Non-Contact Voltage Detector | Yes |
| Maximum Operating Temperature | +40°C |
| Power Source | Battery |
