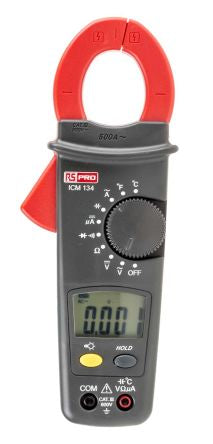

RS PRO ICM134 Clamp Meter, Max Current 600A ac, 4mA dc CAT II 1000 V, CAT III 600 V; 123-3228
Mã kho: 1233228
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum DC Current Measurement | 4mA dc |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Model Number | ICM134 |
| AC Current Measurement Resolution | 100mA |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(1.9% rdg + 1A) |
| Best AC Voltage Accuracy | ±(1.5% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(0.9% rdg + 2dgts) |
| Battery Type | 9V Alkaline |
| DC Voltage Measurement Resolution | 1mV |
| Absolute Maximum Temperature Measurement | +400 °C, +1000 °F |
| Safety Category Voltage | 600 V, 1000 V |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Resistance, Temperature |
| Power Source | Battery |
| Best Temperature Measurement Accuracy | 1 °C, 1 °F |
| Safety Category Level | CAT II, CAT III |
| Jaw Capacity Busbars | 32mm |
| Battery Life | 200 h |
| Maximum Conductor Size | 32 (Dia.)mm |
| AC Voltage Measurement Resolution | 1mV |
| Minimum Operating Temperature | 0°C |
| Safety Category | CAT II 1000 V, CAT III 600 V |
| Best Resistance Measurement Accuracy | ±0.7% + 2 Digits |
| Display Type | LCD |
| Maximum Operating Temperature | +50°C |
