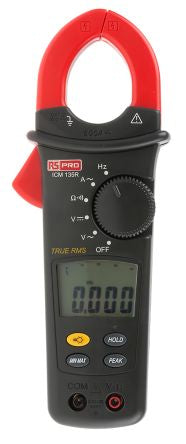

RS PRO ICM135R Clamp Meter, Max Current 600A ac CAT III 600 V; 123-3229
Mã kho: 1233229
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 400Ω |
| Model Number | ICM135R |
| AC Current Measurement Resolution | 100mA |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(1.9% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(0.7% rdg + 2dgts) |
| Length | 76mm |
| Resistance Measurement Resolution | 100mΩ |
| Dimensions | 76 x 50 x 220mm |
| DC Voltage Measurement Resolution | 100mV |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Frequency, Resistance |
| True RMS | Yes |
| Power Source | Battery |
| Width | 50mm |
| Height | 220mm |
| Minimum Operating Temperature | 0°C |
| Best Resistance Measurement Accuracy | ±1% + 3 Digits |
| Safety Category | CAT III 600 V |
| Battery Type | IEC 6F22, NEDA 1604, 9V |
| Safety Category Voltage | 600V |
| Weight | 360g |
| Battery Life | 300 h |
| Maximum Conductor Size | 34 (Dia.)mm |
| Safety Category Level | CAT III |
| Jaw Capacity Busbars | 34mm |
| AC Voltage Measurement Resolution | 100mV |
| Display Type | LCD |
| Maximum Operating Temperature | +50°C |
