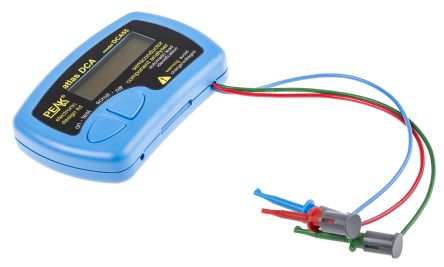

Peak DCA55 Component & IC Tester Component, Model DCA55 [DCA55]; 410-0176

Peak Component And IC Tester

The Peak component and IC tester component is an intelligent component analyser. It is 20mm high, 70mm wide and 103mm long. The DCA55 tester can analyse a vast number of different component types including bipolar transistors, MOSFETs, thyristors, triacs, diodes, LEDs and others. It provides information such as component type and pin out along with measurable parameters like gain, gate threshold voltages, voltage drops and more.

Features and Benefits

Auto and manual power-off

Automatic component identification

Automatic pin out identification

Scrollable pages of information

Applications

Identification of different LED types such as 2 or 3 terminal bicolour types

Identification of diode networks such as common anode, common cathode, series and inverse parallel types

Identification of special component features such as diode protection or resistor shunts on transistors

Measurement of MOSFET gate thresholds

Measurement of semiconductor voltage drops for transistors, diodes and LEDs

Measurement of transistor gain from 2 to 65000
