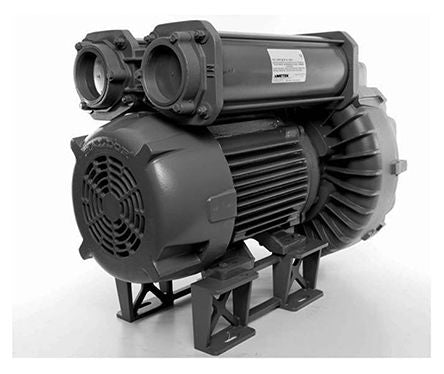

Ametek Regenerative Centrifugal Fan, 575 V ac AC [DR14DW86MW/081479]; 892-1683
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 575 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 1752.45m³/h |
| Series | DR14 |
| Height | 701mm |
| Width | 446.3mm |
| Depth | 801.4mm |
| Dimensions | 446.3 x 701 x 801.4mm |
| Inlet Diameter | 101.6mm |
| Horizontal Hole Spacing | 245.1 mm, 279.4 mm |
| Outlet Diameter | 101.6mm |
| Maximum Current | 32.8A |
| Termination Type | Terminal |
| Direction of Curve | Forward |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
