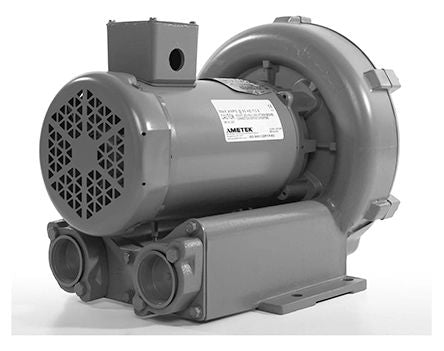

Ametek Regenerative Centrifugal Fan 254 x 245 x 299mm, 575 V ac AC [DR202Y86M/080566]; 892-1699
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 575 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 86.78m³/h |
| Series | DR202 |
| Height | 254mm |
| Width | 245mm |
| Depth | 299mm |
| Dimensions | 245 x 254 x 299mm |
| Horizontal Hole Spacing | 83 mm, 206.2 mm |
| Direction of Curve | Forward |
| Mounting Hole Diameter | 10mm |
| Outlet Diameter | 31.75mm |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
| Termination Type | Terminal |
| Maximum Current | 570mA |
| Inlet Diameter | 31.75mm |
