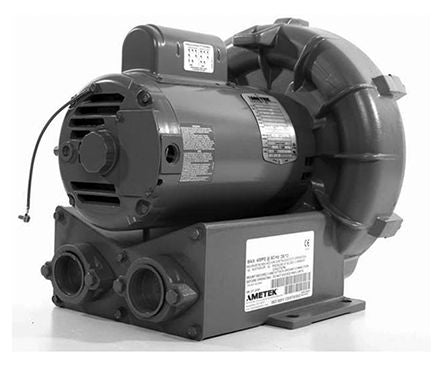

Ametek Regenerative SPA Centrifugal Fan 365.3 x 343.7 x 381mm, 115 V ac, 230 V ac AC [DR505AW58M/037935]; 892-1769
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 115 V ac, 230 V ac |
| Blower Type | Regenerative SPA |
| AC or DC Operation | AC |
| Air Flow | 267.04m³/h |
| Series | DR505 |
| Height | 365.3mm |
| Width | 343.7mm |
| Depth | 381mm |
| Dimensions | 343.7 x 365.3 x 381mm |
| Bearing Type | Ball |
| Inlet Diameter | 50.8mm |
| Horizontal Hole Spacing | 114.3 mm, 261.6 mm |
| Direction of Curve | Forward |
| Maximum Current | 13 A, 26 A |
| Termination Type | Ground Lug |
| Outlet Diameter | 50.8mm |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings And Class B Rated Thermal Protection |
