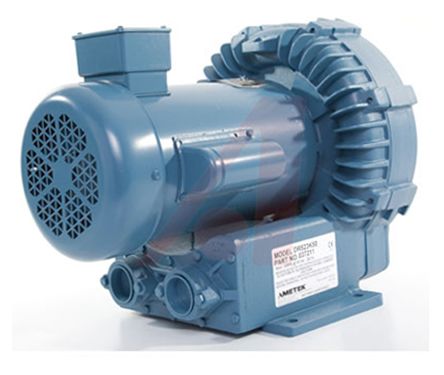

Ametek Regenerative Centrifugal Fan, 575 V ac AC [DR523K86/037772]; 892-1784
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 575 V ac |
| Blower Type | Regenerative |
| AC or DC Operation | AC |
| Air Flow | 140.19m³/h |
| Series | DR523 |
| Height | 409.5mm |
| Width | 358.1mm |
| Bearing Type | Ball |
| Horizontal Hole Spacing | 139.7 mm, 290.1 mm |
| Inlet Diameter | 38.1mm |
| Direction of Curve | Forward |
| Mounting Hole Diameter | 15mm |
| Maximum Current | 3.4A |
| Termination Type | Terminal |
| Special Features | Inlet and Outlet Internal Muffling, Quiet Operation within OSHA Standards, UL & CSA Approved Motor with Permanently Sealed Ball Bearings |
| Outlet Diameter | 38.1mm |
