Panduit Harness Clip [HCMU04C13-M20]; PAM129

Name: Panduit Harness Clip [HCMU04C13-M20]; PAM129
Brand: Panduit
SKU: PAM129
Price: 4590.0 VND
Availability: InStock

Mã kho: PAM129

Mã nhà sản xuất: HCMU04C13-M20

Tên nhà sản xuất: Panduit

4.590₫ - 4.590₫

4.590₫

4.590₫ - 4.590₫

4.590₫

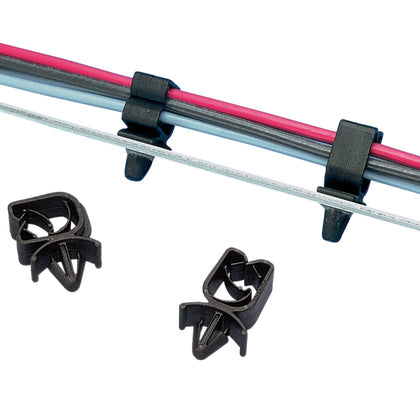

Harness Clip

Application	Vertical and Horizontal Loading Configurations with Integral “Spring” Holds Wire Bundles Tightly
Product Type	Harness Clip
Body Material	Nylon 6.6
Color	Black
Environment	Indoor
Maximum Bundle Diameter (In.)	0.51
Maximum Bundle Diameter (mm)	13
Maximum Compatible Panel Thickness (In.)	0.09
Maximum Compatible Panel Thickness (mm)	2.3
Mount Method	Push Barb
Mounting Hole Diameter (In.)	0.25
Mounting Hole Diameter (mm)	6.6
Overall Height (In.)	1.05
Overall Height (mm)	26.7
Overall Length (In.)	0.39
Overall Length (mm)	10
Overall Width (In.)	0.92
Overall Width (mm)	23.5
Standards Met	RoHS Complaint
Part Features	Available in vertical and horizontal loading configurations with Integral “spring” holds wire bundles tightly
