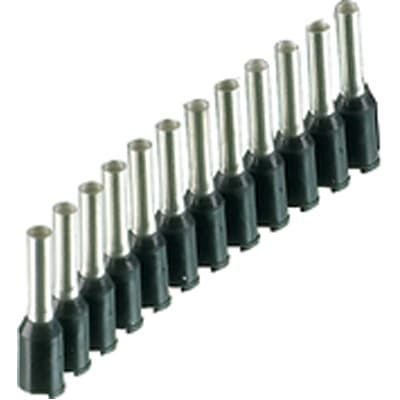

Panduit FSD78-8-DSL0

Panduit Terminals & Terminal Kits, [FSD78-8-DSL0]; PAH734

Mã kho: PAH734
Mã nhà sản xuất: FSD78-8-DSL0
Tên nhà sản xuất: Panduit
1.000₫ - 1.000₫
1.000₫
1.000₫ - 1.000₫
1.000₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Ferrules: Panduit FSD78-8-DSL0

MÔ TẢ SẢN PHẨM

The FSD78-8-DSL0 Pan-Term® Ferrule is a covered, single-wire ferrule end sleeve. Designed with a seamless barrel to contain loose wire strands for superior terminations. Plastic covering flare allows for faster and easier wire insertion to lower installed cost. Eases insertion of wire into the termi

_THÔNG SỐ KỸ THUẬT:

Ferrule Type Single Wire Standard
Cover Material Polypropylene
Copper Conductor Size (AWG) 16
Maximum Metric Conductor Size (mm²) 1.5
Minimum Metric Conductor Size (mm²) 1.5
Flammability Rating UL94-HB
Wire Strip Length (In.) 13/32
Wire Strip Length (mm) 10
Pin Length (In.) 0.31
Pin Length (mm) 8
Inside Diameter (In.) 0.07
Inside Diameter (mm) 1.8
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Minimum Operating Temperature (°C) -54
Minimum Operating Temperature (°F) -60
Maximum Wire Insulation Diameter (In.) 0.13
Maximum Wire Insulation Diameter (mm) 3.2
Overall Length (In.) 0.57
Overall Length (mm) 14.5
Product Type Single wire ferrule
Standards Met DIN 46228, CSA C22.2 No. 291-14, UL 486F
Finish/Coating Tin-Plated
For Use With CT-1000
Packaging Type Ferrules on a Strip
Base Material Copper
Color Code Black
Sub Brand Pan-Term®
Part Features Polypropylene insulation housing available in DIN standard colors in strips of 50 Continuously molded design provides consistent placement of ferrules in tool to ensure fast, reliable terminations Meets DIN, UL and CSA standards for single wire containment -Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Designed for use with the Semiautomatic Ferrule Crimping Tool CT-1000 for medium volume applications
