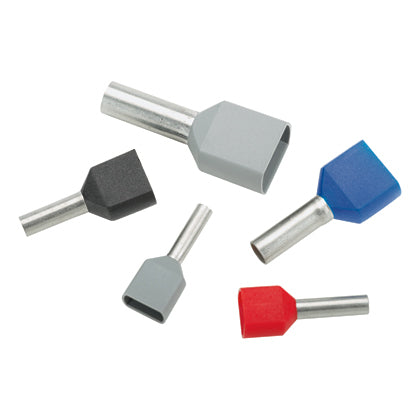

Panduit FTD80-13-TL

Panduit Terminals & Terminal Kits, [FTD80-13-TL]; PAH758

Mã kho: PAH758
Mã nhà sản xuất: FTD80-13-TL
Tên nhà sản xuất: Panduit
7.500₫ - 7.500₫
7.500₫
7.500₫ - 7.500₫
7.500₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Ferrules: Panduit FTD80-13-TL

MÔ TẢ SẢN PHẨM

The FTD80-13-TL Pan-Term® Ferrule is a covered, twin-wire ferrule end sleeve. Designed with a seamless barrel to contain loose wire strands for superior terminations. Plastic covering flare allows for faster and easier wire insertion to lower installed cost. Eases insertion of wire into the terminal

_THÔNG SỐ KỸ THUẬT:

Ferrule Type Twin Wire
Cover Material Polypropylene
Copper Conductor Size (AWG) 14
Maximum Metric Conductor Size (mm²) 2.5
Minimum Metric Conductor Size (mm²) 2.5
Flammability Rating UL94-HB
Wire Strip Length (In.) 23/32
Wire Strip Length (mm) 18.2
Pin Length (In.) 0.51
Pin Length (mm) 13
Inside Diameter (In.) 0.11
Inside Diameter (mm) 2.8
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Minimum Operating Temperature (°C) -54
Minimum Operating Temperature (°F) -60
Maximum Wire Insulation Diameter (In.) 0.15
Maximum Wire Insulation Diameter (mm) 3.8
Overall Length (In.) 0.85
Overall Length (mm) 21.5
Product Type Twin wire ferrule
Standards Met DIN 46228, CSA C22.2 No. 291-14, UL 486F
Finish/Coating Tin-Plated
For Use With CT-1160, CT-1170, CT-1090, CT-1002, CT-1003, CT-1123, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Packaging Type Loose Piece Ferrules
Base Material Copper
Color Code Blue
Sub Brand Pan-Term®
Part Features Twin Wire Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for twin wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Suitable for limited space panel applications Multiple pin lengths available for a variety of terminal blocks
