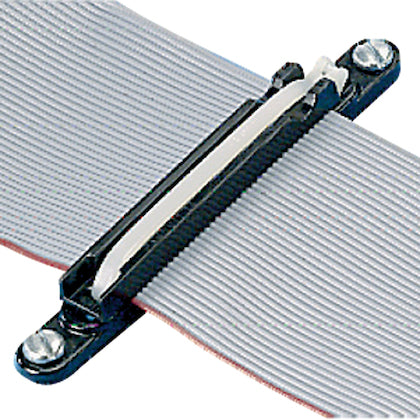

Panduit FCBI2-S10-C20

Panduit Wire Routing, Management & Protection, [FCBI2-S10-C20]; PAH814

Mã kho: PAH814
Mã nhà sản xuất: FCBI2-S10-C20
Tên nhà sản xuất: Panduit
18.690₫ - 18.690₫
18.690₫
18.690₫ - 18.690₫
18.690₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Flat Cable Mounts: Panduit FCBI2-S10-C20

MÔ TẢ SẢN PHẨM

The flat cable mounting system uses one base, one corresponding size plate (FCPI), and one intermediate cross section cable tie to secure stacked 2.0" (50.8mm) wide cables, folds, and breakouts, as well as laminated and molded bus bars. For indoor use only, mounted using #10 (M5) screws, it is in bl

_THÔNG SỐ KỸ THUẬT:

Application Cable Tie to Secure Stacked 2.0" (50.8mm) Wide Cables, Folds, and Breakouts, as Well as Laminated and Molded Bus Bars.
Product Type Cable Tie Mount
Adhesive Material NA
Material Nylon 6.6
Color Black
Environment Indoor
For Use With Flat Cable
Mount Method Cable Tie, Screw
Overall Height (In.) 0.15
Overall Height (mm) 3.8
Overall Length (In.) 3.5
Overall Length (mm) 88.9
Overall Width (In.) 0.38
Overall Width (mm) 9.5
Screw Size #10 (M5)
Standards Met UL Recognized: E136577; RoHS Compliant
