Panduit FCC5-A-D8

Panduit Flat cable clips, any width flat cable, .56" (14.2mm) width, gray, bulkpackage. [FCC5-A-D8]; PAL204

Mã kho: PAL204
Mã nhà sản xuất: FCC5-A-D8
Tên nhà sản xuất: Panduit
4.650₫ - 4.650₫
4.650₫
4.650₫ - 4.650₫
4.650₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Flat Cable Mounts: Panduit FCC5-A-D8

MÔ TẢ SẢN PHẨM

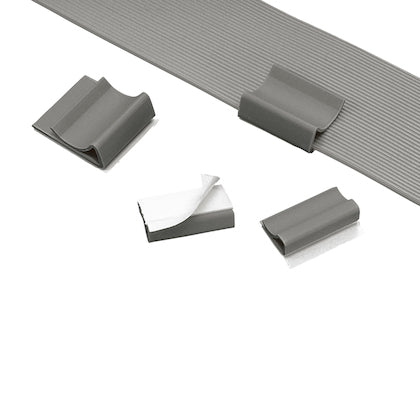

Panduit FCC5-A-D8 Flat Cable Clips have a low profile design and hold wires, cables and tubing. They can be used with any width flat cable with a maximum stacking height of .17” (4.3mm). They are .56” (14.2mm) wide and for use in indoor environments. This part uses rubber adhesive as a mounting meth

_THÔNG SỐ KỸ THUẬT:

Application Wire Routing Solutions
Product Type Flat Cable Mount
Adhesive Material Rubber
Material PVC
Color Gray
Environment Indoor
For Use With Flat Cable
Mount Method Rubber Adhesive Tape
Overall Height (In.) 0.28
Overall Height (mm) 7.1
Overall Length (In.) 1
Overall Length (mm) 25.4
Overall Width (In.) 0.59
Overall Width (mm) 14.8
Standards Met UL Recognized: E136577; RoHS Compliant
Static Load Capacity (kg) 0.117
Static Load Capacity (lb) 0.25
