The right angle base in black accepts a flat cable width of 2.0" (50.8 mm) and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for indoor environments and comes in packages of 100.

Mã kho: PAO506
Tên nhà sản xuất: Panduit
Original price 31.700₫ - Original price 31.700₫
Original price
31.700₫
31.700₫ - 31.700₫
Current price 31.700₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Flat Cable Mounts: Panduit RAFCBI2-S6-C20

MÔ TẢ SẢN PHẨM

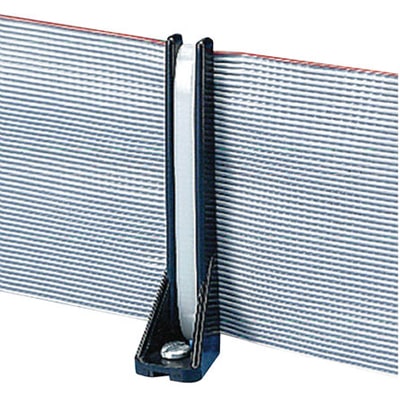

Panduit RAFCBI2-S6-C20 Right Angle Base Mounts support cables above the mounting surface. Mounts are 2.78” (70.6mm) in height and accept flat cables up to 2.0" (50.8 mm) in width. For use in indoor environments and with #6 (M3) screws. Made of Nylon 6.6 are black in color and come in packages of 100

_THÔNG SỐ KỸ THUẬT:

Application For Supporting Cables above Mounting Surface
Product Type Cable Tie Mount
Material Nylon 6.6
Color Black
Environment Indoor
For Use With Flat Cable
Mount Method Cable Tie, Screw
Overall Height (In.) 2.78
Overall Height (mm) 70.6
Overall Length (In.) 0.75
Overall Length (mm) 19.1
Screw Size #6 (M3)
Standards Met UL Listed: E136577; ; CE Compliant; RoHS Compliant
