ifm Electronic Flow Controller, Combicon Connector, Relay, 24 V dc, 11 LED [SR0150]; 411-148

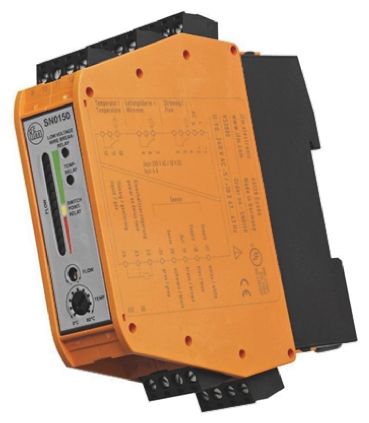

ifm electronic Flow Controller

The ifm electronic control monitor for flow sensor operates. It has 3 switching functions one is relay energised when the flow is present and during the power-ON delay time for flow monitoring, second is relay energised when the temperature is exceeded for temperature monitoring and third is relay de-energised in case of wire break or short circuit for wire break monitoring. The input supply voltage rating of 24VDC. The sensors are connected via pre-mounted comb icon connectors with screw terminals. The slim (25mm) control cabinet housing can be easily mounted on a DIN rail.

Features and Benefits

For the connection of flow sensors

Adjustable switching outputs for monitoring flow and temperature

Clearly visible multi-coloured LED bar graph display

Signal output via potential-free relay contacts with 4A current rating at 230VAC

Switch points configurable using a potentiometer

DIN rail mounting

Power consumption is 4VA

Combicon connector for electrical connection

Applications

Flow, temperature and wire-break monitoring

Certifications

CE certified

UL listed
