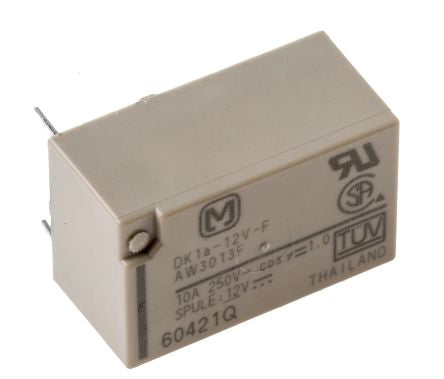

Panasonic SPST Non-Latching Relay PCB Mount, 12V dc Coil, 10 A [DK1A12F]; 650-2394
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Coil Power | 200mW |
| Coil Resistance | 720 Ω |
| Isolation Coil To Contact | 4kV rms |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 10A |
| Terminal Type | Through Hole |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 125V dc |
| Length | 20mm |
| Height | 9.7mm |
| Depth | 12.5mm |
| Maximum Switching Power DC | 300 W |
| Maximum Switching Power AC | 2.5 kVA |
