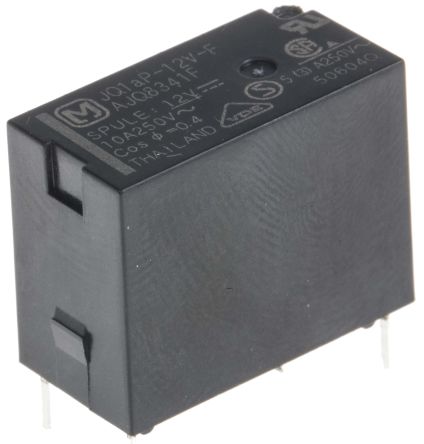

Panasonic SPNO Non-Latching Relay PCB Mount, 12V dc Coil, 10 A [JQ1AP12]; 650-2417
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Contact Configuration | SPNO |
| Switching Current | 0.416666666666667 |
| Mounting Type | PCB Mount |
| Terminal Type | Through Hole |
| Coil Resistance | 720 Ω |
| Application | Power |
| Length | 20mm |
| Depth | 10mm |
| Height | 16mm |
| Dimensions | 20 x 10 x 16mm |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Power DC | 150 W |
| Operating Temperature Range | -40 → +70°C |
| Coil Power | 200mW |
| Life | 10000000 (Electrical) cycles |
| Isolation Coil To Contact | 4kV rms |
| Contact Material | Silver Alloy |
| Maximum Switching Power AC | 1.25 kVA |
| Maximum Operating Temperature | +70°C |
