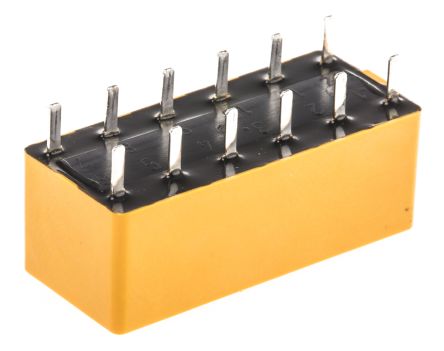

Panasonic 4PST-NO Non-Latching Relay PCB Mount, 5V dc Coil, 38.5 mA [S45]; 127-9279
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | 4PST-NO |
| Switching Current | 38.5 mA |
| Mounting Type | PCB Mount |
| Terminal Type | Through Hole |
| Coil Resistance | 130 Ω |
| Length | 28mm |
| Depth | 12mm |
| Height | 10.4mm |
| Dimensions | 28 x 12 x 10.4mm |
| Maximum Switching Power DC | 90 W |
| Coil Power | 192mW |
| Minimum Operating Temperature | -40°C |
| Isolation Coil To Contact | 1.5kV rms |
| Operating Temperature Range | -40 → +65°C |
| Maximum Switching Power AC | 1 kVA |
| Contact Material | Gold Plated |
| Maximum Operating Temperature | +65°C |
| Life | 100000000 (Electrical) cycles |
