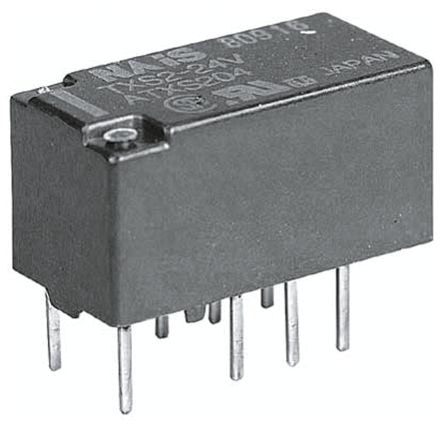

DPDT PCB Mount Latching Relay 1 A, 12V dc For Use In Telecommunications Applications [TXS2-L2-12V]; 173-9240
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 0.0416666666666667 |
| Maximum Switching Voltage DC | 110V |
| Maximum Switching Power DC | 30 W |
| Length | 15mm |
| Depth | 7.4mm |
| Height | 8.2mm |
| Dimensions | 15 x 7.4 x 8.2mm |
| Terminal Type | PCB Pin |
| Application | Telecommunications |
| Minimum Operating Temperature | -40°C |
| Life | 50000000 operations |
| Isolation Coil To Contact | 1.8kV rms |
| Coil Power | 150mW |
| Maximum Operating Temperature | +70°C |
| Electrical Life | 200000 operations |
| Operating Temperature Range | -40 → +70°C |
| Features | High Contact Reliability, Outstanding Surge Resistance |
| Coil Resistance | 2.057 k |
| Contact Material | Gold Plated |
