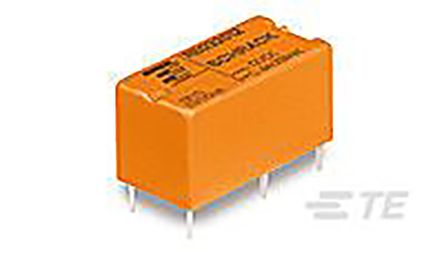

Relay,miniature,PCB,SPST-NO,6A,24Vdc [1-1393217-8]; 191-8266
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 200mW |
| Coil Resistance | 2.88 kΩ |
| Isolation Coil To Contact | 4000Vrms |
| Contact Configuration | SPNO |
| Mounting Type | PCB Mount |
| Switching Current | 6A |
| Terminal Type | PCB Pin |
| Number of Poles | 1 |
| Maximum Switching Voltage AC | 400V |
| Series | RE |
| Height | 10.6mm |
| Maximum Switching Power DC | 200 mW |
| Length | 20mm |
| Maximum Switching Power AC | 1.5 kVA |
| Depth | 10mm |
