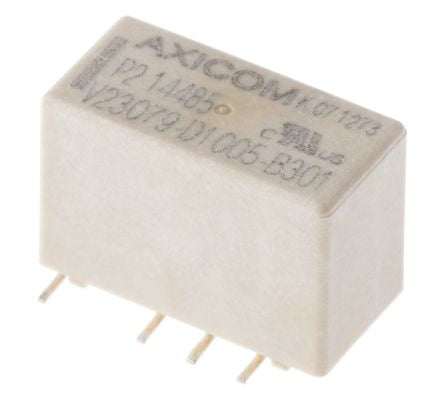

TE Connectivity DPDT Non-Latching Relay Surface Mount, 24V dc Coil, 5 A [5-1393788-8]; 791-7564
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 140mW |
| Coil Resistance | 4.114 kΩ |
| Isolation Coil To Contact | 1.5kV rms |
| Contact Configuration | DPDT |
| Mounting Type | Surface Mount |
| Switching Current | 5A |
| Terminal Type | PCB Pin |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Maximum Switching Power DC | 60 W |
| Depth | 7.2mm |
| Height | 9.8mm |
| Length | 14.5mm |
| Maximum Switching Power AC | 62.5 VA |
| Series | P2 |
