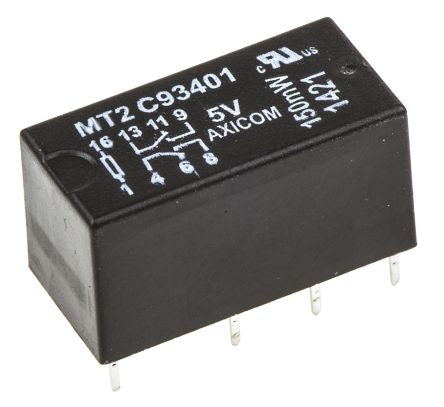

TE Connectivity DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 2 A [MT2-C93401]; 619-2981
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Coil Power | 150mW |
| Coil Resistance | 168 Ω |
| Isolation Coil To Contact | 1.5kV |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Terminal Type | Through Hole |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Series | MT |
| Height | 11mm |
| Maximum Switching Power DC | 60 W |
| Maximum Switching Power AC | 62.5 VA |
| Length | 20.2mm |
| Depth | 10mm |
