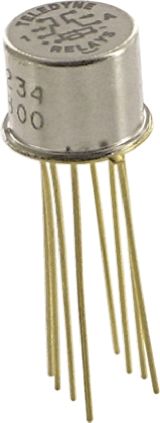

DPDT PCB Mount, RF Relay 12V dc 9.4mm [712D-12]; 758-2433
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Resistance | 390 Ω |
| Contact Resistance | 150 mΩ |
| Contact Configuration | DPDT |
| Coil Voltage | 12 V dc |
| Mounting Type | PCB Mount |
| Contact Voltage | 28V dc |
| Coil Power | 450mW |
| Contact Material | Gold Plated |
| Height | 6.99mm |
| Operating Temperature Range | -55 → +85°C |
| Life | 10000000 cycles |
| Minimum Operating Temperature | -55°C |
| Diameter | 9.4mm |
| Maximum Operating Temperature | +85°C |
| Operating Time Including Bounce | 4ms |
| Dimensions | 9.4 x 6.99mm |
