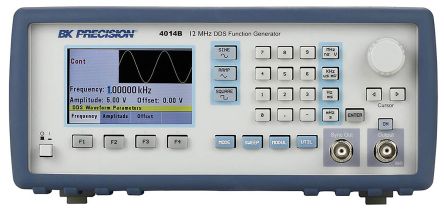

BK Precision 4014B Function Generator 12MHz USB A, USB B [BK4014B]; 121-7544
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency Range Sinewave | 12MHz |
| Minimum Frequency Range Sinewave | 0.01Hz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 12MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 0.01 Hz |
| Maximum Frequency Range Triangle/Saw | 1MHz |
| Minimum Frequency Range Triangle/Saw | 0.01Hz |
| Digital Frequency | Yes |
| Digital Amplitude and Offset | Yes |
| Internal Linear and Log Sweep | Yes |
| Variable Sweep | Yes |
| Internal and External Amplitude Modulation | Yes |
| FM Modulation | Yes |
| Maximum Operating Temperature | +50°C |
| Dimensions | 213 x 210 x 88mm |
| Output Amplitude | 20V Pk-Pk |
| Output Impedance | 50Ω |
| Weight | 2.5kg |
| Interface Type | USB A, USB B |
| Model Number p | 4014B |
| Length | 213mm |
| TTL Output Level | 5V Pk-Pk |
| Input Impedance | 10 (Modulation) kΩ |
| Width | 210mm |
| Frequency Range Square Pulse and Arbitrary Waveform | 0.01 Hz → 12 MHz |
| Minimum Operating Temperature | 0°C |
| Height | 88mm |
