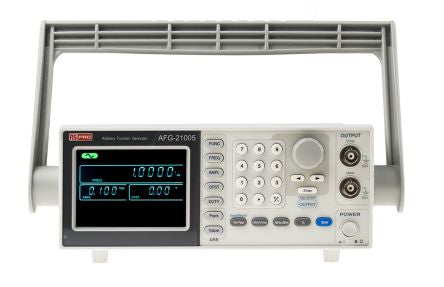

RS PRO AFG21005 Function Generator 5MHz USB; 123-3529
Mã kho: 1233529
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency Range Sinewave | 5MHz |
| Minimum Frequency Range Sinewave | 0.1Hz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 5MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 0.1 Hz |
| Maximum Frequency Range Triangle/Saw | 1MHz |
| Minimum Frequency Range Triangle/Saw | 0.1Hz |
| Digital Frequency | Yes |
| Digital Amplitude and Offset | Yes |
| Internal Linear and Log Sweep | Yes |
| Variable Sweep | Yes |
| Internal and External Amplitude Modulation | Yes |
| FM Modulation | Yes |
| Time Base Accuracy | ±20ppm |
| Width | 293mm |
| Output Amplitude | 1 mV Pk-Pk → 10 V Pk-Pk, 2 mV Pk-Pk → 20 V Pk-Pk (Open Circuit) |
| Maximum Operating Temperature | +40°C |
| Dimensions | 266 x 293 x 107mm |
| Interface Type | USB |
| Minimum Operating Temperature | 0°C |
| Height | 107mm |
| Input Impedance | 1 kΩ |
| Model Number p | AFG21005 |
| Weight | 2.5kg |
| Plug Type | UK |
| Frequency Range Square Pulse and Arbitrary Waveform | 0.1 Hz → 5 MHz |
| Length | 266mm |
| Output Impedance | >300 (Output Disabled) kΩ, 50 (Fixed) Ω |
