Panduit Wire Routing, Management & Protection, [GES144F-A-C0]; PAH850

Name: Panduit Wire Routing, Management & Protection, [GES144F-A-C0]; PAH850
Brand: Panduit
SKU: PAH850
Price: 1543350.0 VND
Availability: InStock

Mã kho: PAH850

Mã nhà sản xuất: GES144F-A-C0

Tên nhà sản xuất: Panduit

1.543.350₫ - 1.543.350₫

1.543.350₫

1.543.350₫ - 1.543.350₫

1.543.350₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

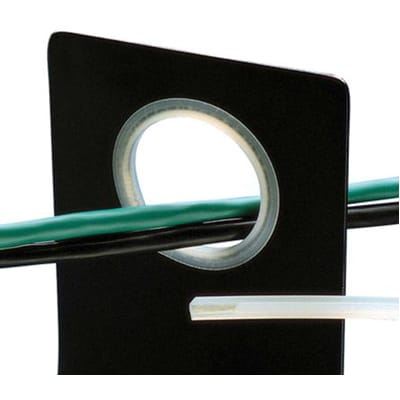

Wire Routing Management Protection / Abrasion Protection / Grommet Edging: Panduit GES144F-A-C0

MÔ TẢ SẢN PHẨM

Solid grommet edging with adhesive lined (use on straight edges only), .144" thickness, weather resistant polyethylene, black.

_THÔNG SỐ KỸ THUẬT:

Product Type	Solid Grommet Edging
Color	Black
Flammability Rating	UL94-HB
Material	Weather Resistant Polyethylene
Maximum Compatible Panel Thickness (In.)	0.144
Maximum Compatible Panel Thickness (mm)	3.7
Maximum Operating Temperature (°C)	50
Maximum Operating Temperature (°F)	122
Minimum Compatible Panel Thickness (In.)	0.099
Minimum Compatible Panel Thickness (mm)	2.5
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Overall Height (In.)	0.22
Overall Height (mm)	5.6
Overall Width (In.)	0.21
Overall Width (mm)	5.4
Overall Length (ft.)	100
Overall Length (m)	30.5
Resistance Properties	Weather-Resistant
Standards Met	RoHS Compliant
Application	To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts.
Part Features	Provides protection for cables being installed where there might be sharp edges with irregular shaped and round panel holes.
