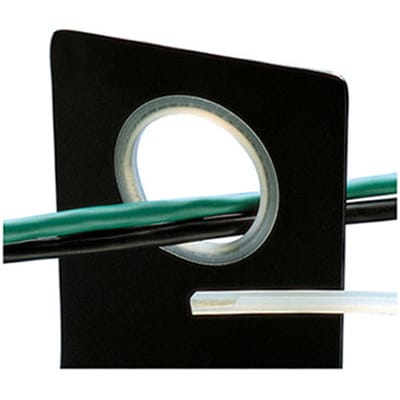

Panduit GES189F-C

Panduit Grommet Edging, [GES189F-C]; PAF507

Mã kho: PAF507
Mã nhà sản xuất: GES189F-C
Tên nhà sản xuất: Panduit
1.658.320₫ - 1.658.320₫
1.658.320₫
1.658.320₫ - 1.658.320₫
1.658.320₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Grommet Edging: Panduit GES189F-C

MÔ TẢ SẢN PHẨM

Solid grommet edging (use on straight edges only), .189" thickness, polyethylene, natural.

_THÔNG SỐ KỸ THUẬT:

Product Type Solid Grommet Edging
Color Natural
Flammability Rating UL94-HB
Material Polyethylene
Maximum Compatible Panel Thickness (In.) 0.189
Maximum Compatible Panel Thickness (mm) 4.8
Maximum Operating Temperature (°C) 50
Maximum Operating Temperature (°F) 122
Minimum Compatible Panel Thickness (In.) 0.144
Minimum Compatible Panel Thickness (mm) 3.7
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Overall Height (In.) 0.3
Overall Height (mm) 7.6
Overall Width (In.) 0.29
Overall Width (mm) 7.5
Overall Length (ft.) 100
Overall Length (m) 30.5
Resistance Properties Abrasion Protection
Standards Met RoHS Compliant
Application To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts.
Part Features Provides protection for cables being installed where there might be sharp edges on straight edges
