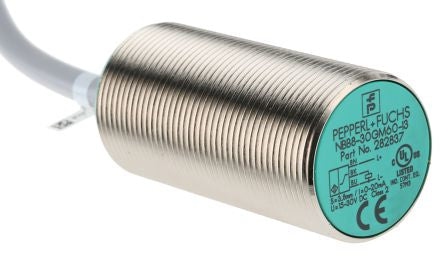

Pepperl + Fuchs, M30 x 1.5, Analogue Inductive Sensor 60mm Length, 15 → 30 V dc supply voltage , IP67 Rating [NBB8-30GM60-I3]; 163-5209
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | 0-20 mA, Analogue |
| Detection Range | 8 mm |
| Terminal Type | Cable |
| Supply Voltage | 15 → 30 V dc |
| Length | 60mm |
| Width | 30mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| IP Rating | IP67 |
| Switching Current | 0 → 20 mA |
| Housing Material | Brass |
| Minimum Operating Temperature | -25°C |
| Standards Met | CCC Approval, CE Certified, CULus Certified, CULus Listed, EN 60947-5-2, EN 60947-5-7, IEC 60947-5-2, IEC 60947-5-7 |
| Maximum Operating Temperature | +70°C |
