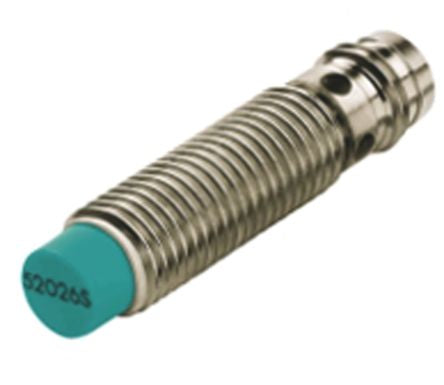

Pepperl + Fuchs, M8 x 1, PNP-NO Inductive Sensor 35mm Length, 10 → 30 V dc supply voltage , IP67 Rating [NBN3-8GM25-E2-V3]; 831-3663
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M8 x 1 |
| Output Type | PNP-NO |
| Detection Range | 3 mm |
| Terminal Type | M8 - 3 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 35mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| IP Rating | IP67 |
| Switching Current | 100 mA |
| Housing Material | Brass, Nickel Plated |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 2kHz |
| Minimum Operating Temperature | -25°C |
| Shielding | Partial |
| Maximum Operating Temperature | +70°C |
