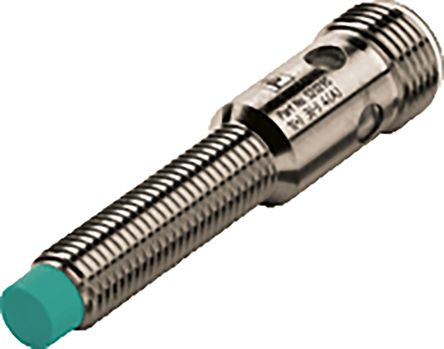

Pepperl + Fuchs, M12, PNP Inductive Sensor 55mm Length, 5 → 30 V supply voltage , IP67 Rating [NBN3-8GM30-E2-V1]; 184-8821
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | PNP-NO |
| Detection Range | 3 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 5 → 30 V dc |
| Length | 55mm |
| Width | 8mm |
| Mounting Type | Non Flush |
| IP Rating | IP67 |
| Switching Current | 100 mA |
| Housing Material | Brass |
| Short Circuit Overload Protection | Yes |
| Standards Met | CCC Certified, CE Certified, CULus Listed, EN 60947-5-2, EN 60947-5-2/A1, IEC 60947-5-2, IEC 60947-5-2 AMD 1 |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 4,5kHz |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
