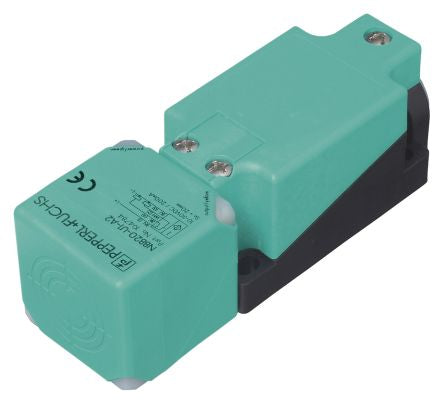

Pepperl + Fuchs NO/NC Inductive Sensor 118mm Length, 5 → 60 V dc supply voltage , IP68, IP69K Rating [NBN40-U1-Z2]; 105-8534
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | NO/NC |
| Detection Range | 40 mm |
| Terminal Type | M20 Gland |
| Supply Voltage | 5 → 60 V dc |
| Length | 118mm |
| Width | 40mm |
| Depth | 40mm |
| Maximum DC Voltage | 60V |
| Mounting Type | Non Flush |
| IP Rating | IP68, IP69K |
| Switching Current | 200 mA |
| Housing Material | Metal With Epoxy Powder Coating, Polyamide |
| Maximum Operating Temperature | +85°C |
| Short Circuit Overload Protection | Yes |
| Standards Met | CCC, CCSAus Listed, CE, CULus Listed, EN 60947-5-2: 2007, IEC 60947-5-2: 2007 |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Shielding | Shielded |
| Maximum Switching Frequency | 100Hz |
