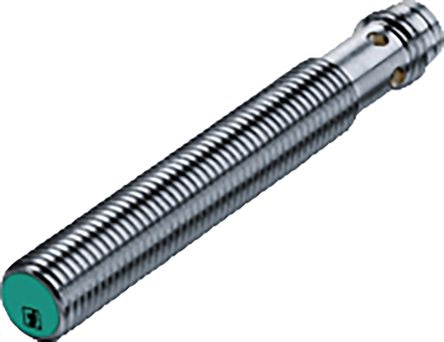

Pepperl + Fuchs, M8, PNP Inductive Sensor 60mm Length, 5 → 30 V supply voltage , IP67 Rating [NEB4-8GM50-E2-V3]; 184-8813
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M8 x 1 |
| Output Type | PNP-NO |
| Detection Range | 4 mm |
| Terminal Type | M8 - 3 Pin |
| Supply Voltage | 5 → 30 V dc |
| Length | 60mm |
| Mounting Type | Flush Mount |
| Switching Current | 200 mA |
| IP Rating | IP67 |
| Housing Material | Brass |
| Standards Met | CCC Certified, CCSAus Listed, CE Certified, CULus Listed, EN 60947-5-2, IEC 60947-5-2 |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 500Hz |
