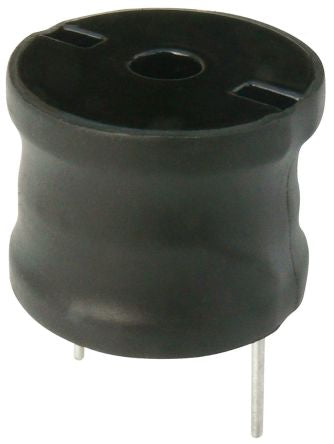

Bourns 330 μH ±10% Ferrite Bobbin Core Power Inductor, 6.1A Idc, 74mΩ Rdc 1140 [1140-331K-RC]; 122-9232
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 330 μH |
| Maximum DC Current | 6.1A |
| Mounting Type | Radial |
| Maximum DC Resistance | 74mΩ |
| Tolerance | ±10% |
| Diameter | 1.5mm |
| Height | 1.03mm |
| Dimensions | 1.5 (Dia.) x 1.03mm |
| Core Material | Ferrite Bobbin Core |
| Lead Pitch | 1.15mm |
| Series | 1140 |
| Lead Diameter | 0.051mm |
| Terminal Type | Radial Leaded |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +105°C |
