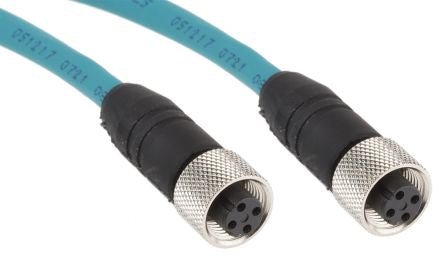

Alpha Wire Alpha Connect Series, Straight M12 to Straight M12 Cordset, 4 Core , 3m Cable [AR04AR117 TL 357]; 131-4684
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Straight M12 |
| Length | 3m |
| Number of Cores | 4 |
| Connector A Number of Contacts | 4 |
| Connector B Number of Contacts | 4 |
| Current Rating | 1.6 A |
| Sheath Colour | Blue |
| Number of Strands | 7 |
| IP Rating | IP68 |
| Voltage Rating | 300 V |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.25 mm² |
| Series | Alpha Connect |
| Connector A Housing Gender | Socket |
| Size of Strands | 32 |
| Maximum Operating Temperature | +75°C |
| Connector B Housing Gender | Socket |
| Conductor Material | Tinned Copper |
| Outer Sheath Material | TPE |
| Minimum Bend Radius | 10 x D (Static), 20 x D (Dynamic) |
| Standards Met | CSA, UL |
| Minimum Operating Temperature | -40°C |
| Sheath Material | Thermoplastic Elastomers TPE |
| Outer Diameter | 6.1mm |
| American Wire Gauge | 24 |
| Insulation Material | Polyolefin |
| Shielding | Unshielded |
