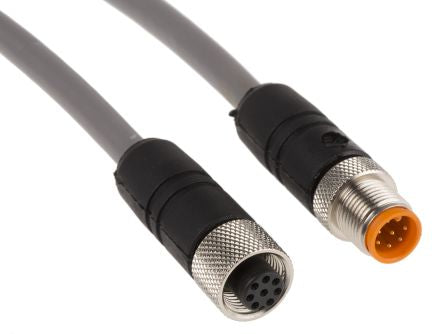

Alpha Wire Alpha Connect Series, Straight M12 to Straight M12 Cordset, 8 Core , 3m Cable [DR08AR128 SL 357]; 131-4703
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Straight M12 |
| Length | 3m |
| Number of Cores | 8 |
| Connector A Number of Contacts | 8 |
| Connector B Number of Contacts | 8 |
| Current Rating | 1.4 A |
| Sheath Colour | Grey |
| Number of Strands | 7 |
| IP Rating | IP67, IP68 |
| Voltage Rating | 300 V |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.25 mm² |
| Connector A Housing Gender | Socket |
| Connector B Housing Gender | Plug |
| Series | Alpha Connect |
| Outer Diameter | 6.1mm |
| Maximum Operating Temperature | +105°C |
| Minimum Bend Radius | 8 x D |
| Outer Sheath Material | PVC |
| Conductor Material | Copper |
| Sheath Material | Polyurethane PUR |
| American Wire Gauge | 24 |
| Shielding | Shielded |
| Insulation Material | PVC |
| Minimum Operating Temperature | -40°C |
| Standards Met | ANSI/UL 2238, CRU, CSA-C22.2 No. 182.3, UL File Number E485156 |
