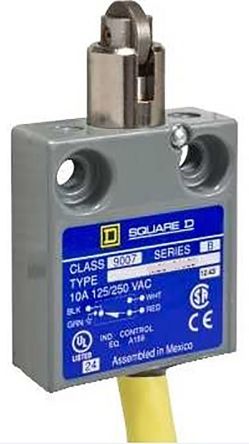

IP67 Snap Action Limit Switch Plunger Die Cast Zinc, Metal, NO/NC, 240V [9007ML03S0100]; 125-8455
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | SPDT-DB |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Die Cast Zinc, Metal |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 28V |
| Connection Type | Pre Wired Cable |
| Contact Type | Snap Action |
| Terminal Type | Pre Wired Cable |
| Length | 39.62mm |
| Width | 15.75mm |
| Standards Met | CE, CSA, E78403, LR 25490 Class 32 11 03, UL |
| Maximum Operating Temperature | +104.44°C |
| Dimensions | 39.62 x 15.75 x 44.45 mm |
| Mechanical Life Minimum | 10000000 Cycles |
| Depth | 44.45mm |
| Minimum Operating Temperature | -40°C |
