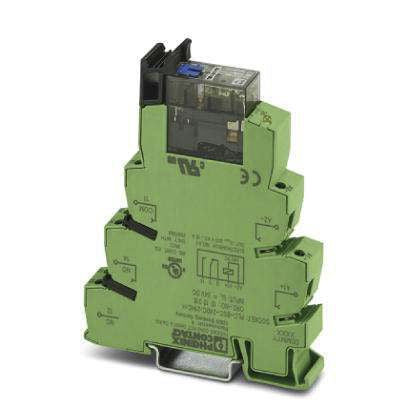

Phoenix Contact PLC-RSC Series 24V dc DIN Rail Interface Relay Module, SPDT, Screw [2910514]; 175-0508
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24V dc |
| Switching Current | 10 mA |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Switching Voltage | 250V ac/dc |
| Terminal Type | Screw |
| Length | 14mm |
| Depth | 104mm |
| Series | PLC-RSC |
| Height | 80mm |
| Dimensions | 14 x 104 x 80mm |
| Contact Material | Silver Alloy |
| Input Current | 18mA |
| Operating Temperature Range | -20 → +60°C |
| Minimum Operating Temperature | -20°C |
| Standards Met | CUL 508 Recognized, EN 50178, UL 508 Recognized |
| Special Features | IP20 Relay Base, Reinforced Insulation, Safe Isolation |
| Number of Poles | 1 |
| Maximum Operating Temperature | +60°C |
| Life | 5 x 10^6 (Mechanical) cycles |
| Relay Switching Classification | Interface Relay Module |
